magnetic POT

Thanks to the magnetic POT systems you obtain the best performance during the lifting operations and they cut down at the minimum the mechanical sizes. An other advantage of these systems is the possibility of fixing by through holes, threaded hole or threaded bush. In the following table, you can find different kind of magnetic systems.

Magnetic assembly process

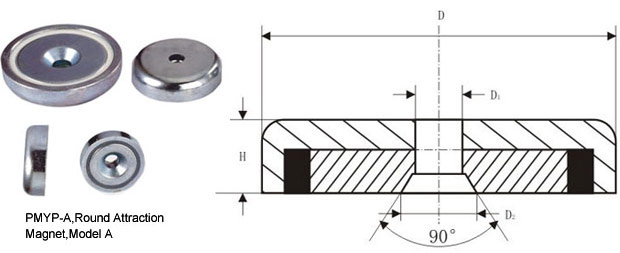

Neodymium Pot Magnet (Round Attraction Magnet)

Model	D	D1	D2	H	Attraction
A16	16mm 0.6"	3.5mm 0.14"	6.5mm 0.3"	5mm 0.2"	5kg 11 lb
A20	20mm 0.8"	4.5mm 0.2"	8.6mm 0.3"	7mm 0.3"	6kg 13 lb
A25	25mm 1.0"	5.5mm 0.2"	10.4mm 0.4"	8mm 0.3"	14kg 31 lb
A32	32mm 1.3"	5.5mm 0.2"	10.4mm 0.4"	8mm 0.3"	25kg 55 lb
A42	42mm 1.7"	6.5mm 0.3"	12mm 0.5"	9mm 0.4"	37kg 82 lb
A48	48mm 1.9"	8.5mm 0.3"	16mm 0.6"	11.5mm 0.5"	68kg 150 lb
A60	60mm 2.4"	8.5mm 0.3"	16mm 0.6"	15mm 0.6"	112kg 247 lb
A75	75mm 3.0"	10.5mm 0.4"	18mm 0.7"	18mm 0.7"	162kg 357 lb

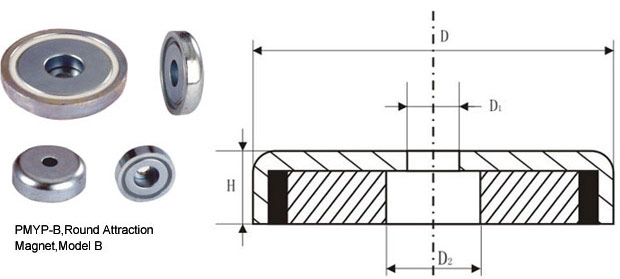

Model	D	D1	D2	H	Attraction
B16	16mm 0.6"	3.5mm 0.14"	6.5mm 0.3"	5mm 0.2"	4kg 9 lb
B20	20mm 0.8"	4.5mm 0.2"	8mm 0.3"	7mm 0.3"	6kg 13 lb
B25	25mm 1.0"	5.5mm 0.2"	9mm 0.4"	8mm 0.3"	14kg 31 lb
B32	32mm 1.3"	5.5mm 0.2"	9mm 0.4"	8mm 0.3"	23kg 51 lb
B42	42mm 1.7"	6.5mm 0.3"	11mm 0.5"	9mm 0.4"	32kg 71 lb
B48	48mm 1.9"	8.5mm 0.3"	15mm 0.6"	11.5mm 0.5"	63kg 139 lb
B60	60mm 2.4"	8.5mm 0.3"	15mm 0.6"	15mm 0.6"	95kg 209 lb
B75	75mm 3.0"	10.5mm 0.4"	18mm 0.7"	18mm 0.7"	155kg 342 lb

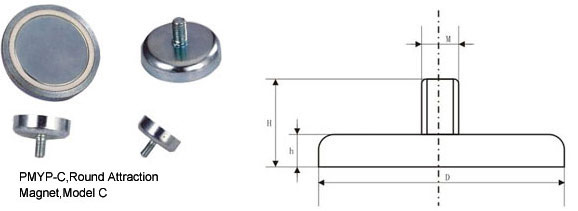

Model	D	M	H	h	Attraction
C10	10mm 0.4"	3mm 0.1"	12mm 0.5"	5mm 0.2"	2.2kg 5 lb
C12	12mm 0.5"	3mm 0.1"	13mm 0.5"	5mm 0.2"	3.2kg 7 lb
C16	16mm 0.6"	4mm 0.2"	13mm 0.5"	5mm 0.2"	5.5kg 12 lb
C20	20mm 0.8"	4mm 0.2"	15mm 0.6"	7mm 0.3"	9kg 20 lb
C25	25mm 1.0"	5mm 0.2"	17mm 0.7"	8mm 0.3"	22kg 49 lb
C32	32mm 1.3"	6mm 0.2"	18mm 0.7"	8mm 0.3"	34kg 75 lb
C36	36mm 1.4"	8mm 0.3"	18mm 0.7"	8mm 0.3"	41kg 90 lb
C42	42mm 1.7"	8mm 0.3"	20mm 0.8"	9mm 0.4"	68kg 150 lb
C48	48mm 1.9"	8mm 0.3"	24mm 0.9"	11.5mm 0.5"	81kg 179 lb
C60	60mm 2.4"	10mm 0.4"	30mm 1.2"	15mm 0.6"	113kg 249 lb

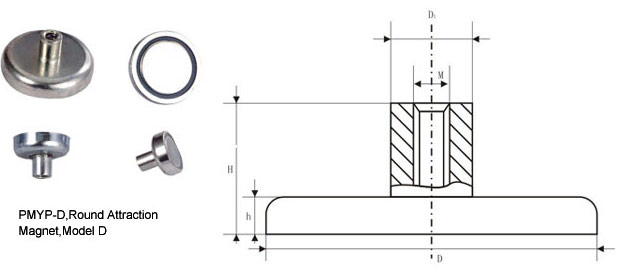

Model	D	D1	M	H	h	Attraction
D10	10mm 0.4"	5.5mm 0.2"	3mm 0.1"	12mm 0.5"	5mm 0.2"	2.2kg 5 lb
D12	12mm 0.5"	6mm 0.2"	3mm 0.1"	13mm 0.5"	5mm 0.2"	3.2kg 7 lb
D16	16mm 0.6"	6mm 0.2"	4mm 0.2"	13mm 0.5"	5mm 0.2"	5.5kg 12 lb
D20	20mm 0.8"	8mm 0.3"	4mm 0.2"	15mm 0.6"	7mm 0.3"	9kg 20 lb
D25	25mm 1.0"	10mm 0.4"	5mm 0.2"	17mm 0.7"	8mm 0.3"	22kg 49 lb
D32	32mm 1.3"	10mm 0.4"	6mm 0.2"	18mm 0.7"	8mm 0.3"	34kg 75 lb
D36	36mm 1.4"	10mm 0.4"	8mm 0.3"	18mm 0.7"	8mm 0.3"	41kg 90 lb
D42	42mm 1.7"	12mm 0.5"	8mm 0.3"	20mm 0.8"	9mm 0.4"	68kg 150 lb
D48	48mm 1.9"	12mm 0.5"	8mm 0.3"	24mm 0.9"	11.5mm 0.5"	81kg 179 lb
D60	60mm 2.4"	14mm 0.6"	10mm 0.4"	30mm 1.2"	15mm 0.6"	113kg 249 lb

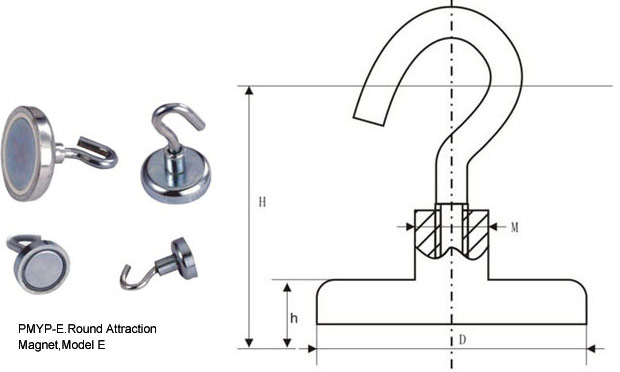

Model	D	M	Attraction
E16	16mm 0.6"	4mm 0.2"	5.5kg 12 lb
E20	20mm 0.8"	4mm 0.2"	9kg 20 lb
E25	25mm 1.0"	4mm 0.2"	22kg 49 lb
E32	32mm 1.3"	4mm 0.2"	34kg 75 lb
E36	36mm 1.4"	4mm 0.2"	41kg 90 lb
E42	42mm 1.7"	4mm 0.2"	68kg 150 lb
E48	48mm 1.9"	5mm 0.2"	81kg 179 lb
E60	60mm 2.4"	5mm 0.2"	113kg 249 lb
E75	75mm 3.0"	6mm 0.2"	164kg 362 lb
